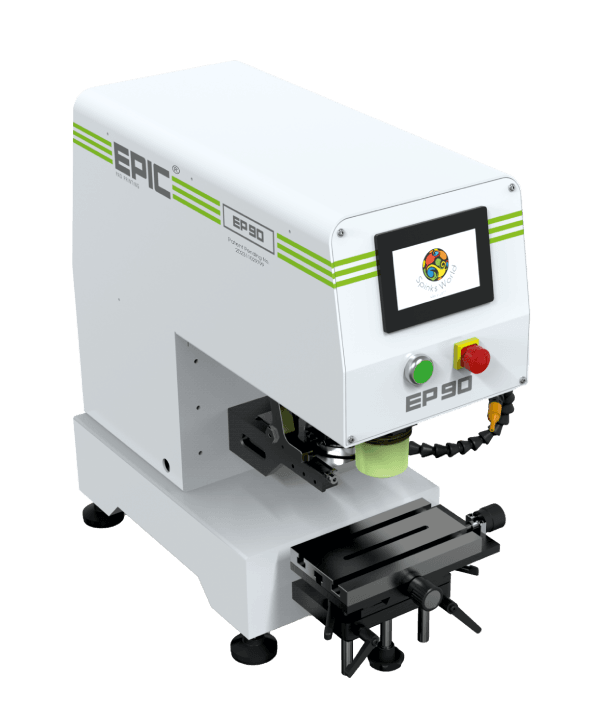

EPIC EP 90
The Powerful Electro-Pneumatic Pad Printing Machine
High-Performance Precision Printing for Modern Manufacturing
The EPIC EP 90 is a next-generation electro-pneumatic pad printing machine designed for industries that demand high accuracy, speed, and reliability. Engineered with a robust 1200N pressure capacity and powered by advanced PLC control, this machine ensures consistent, sharp, and durable prints across diverse substrates.
Whether you’re in automotive, medical devices, electronics, or promotional products, the EP 90 delivers superior performance, making it the ideal choice for businesses seeking scalable and efficient pad printing solutions in the USA.
85mmPrinting area
1600 cycles/hPrinting Speed
Drive – Electro Pneumatic
1200N Force of Pressure
Key Features of the EPIC EP 90
1200N High Pressure for Precision
Ensures accurate, repeatable prints on flat, curved, and irregular surfaces.
Electro-Pneumatic Technology
Combines electrical control with pneumatic power for maximum efficiency and durability.
PLC Controlled HMI
A user-friendly touchscreen interface with intuitive settings and smart control.
Multilingual Support – 27+ Languages
Seamless operation across global manufacturing environments.
Versatile Substrate Compatibility
Prints effortlessly on plastics, metals, glass, ceramics, coated surfaces, and more.
Exceptional Print Quality
Sharp, long-lasting impressions with consistent ink transfer for high-volume runs.
Industries & Applications
The EPIC EP 60 is trusted across industries that demand reliability, precision, and compact solutions. Common applications include: With its balance of size, power, and performance, the EP 60 is the go-to machine for companies seeking dependable pad printing in the USA.
Why Choose EPIC EP 90?
A new benchmark in efficiency, quality, and global reliability.
Made in India, Designed for Global Standards – crafted with Spinks World’s decades of expertise in printing solutions
Seamless Integration – easily fits into existing production lines with minimal downtime
Reduced Maintenance – reliable engineering with easy cleaning and servicing
Industry-Proven Performance – trusted by manufacturers across USA, Europe, and Asia
Discover Variants
From 2-color to 6-color machines, customize printing power to match your production scale.

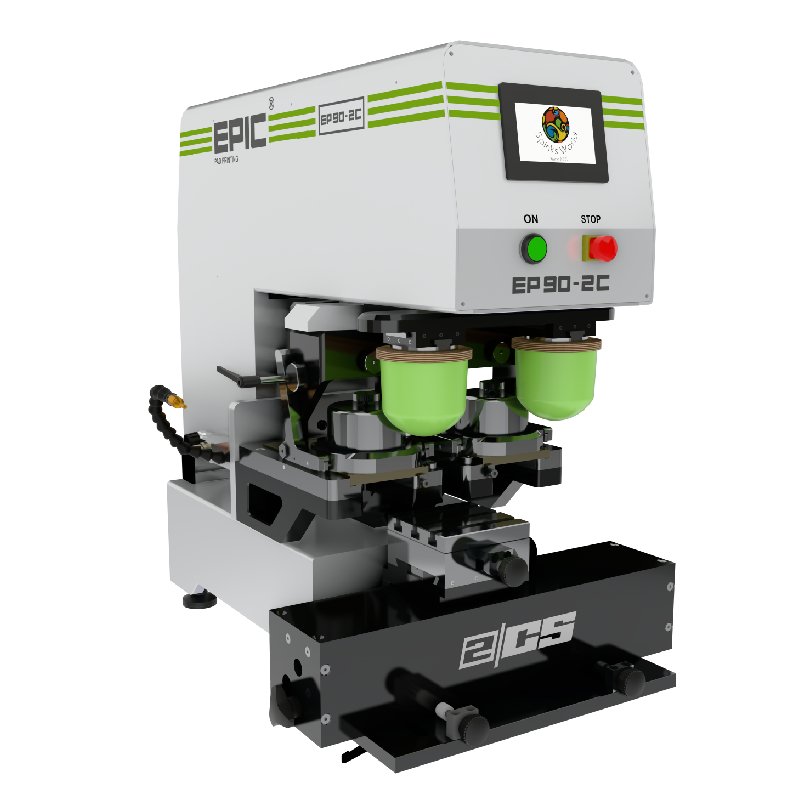

2 Color Machine
3 Color Machine

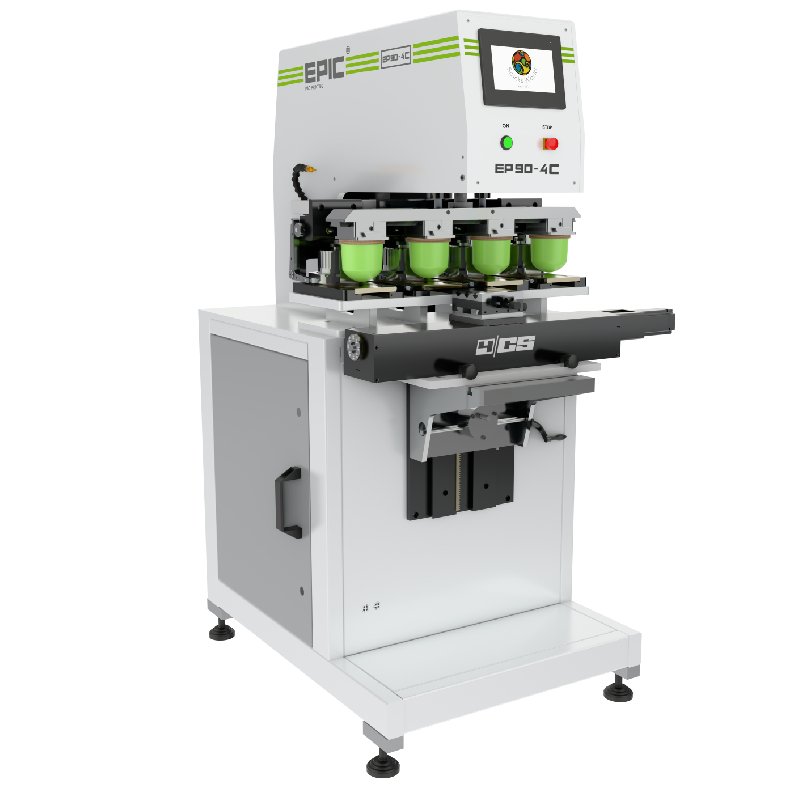

4 Color Machine

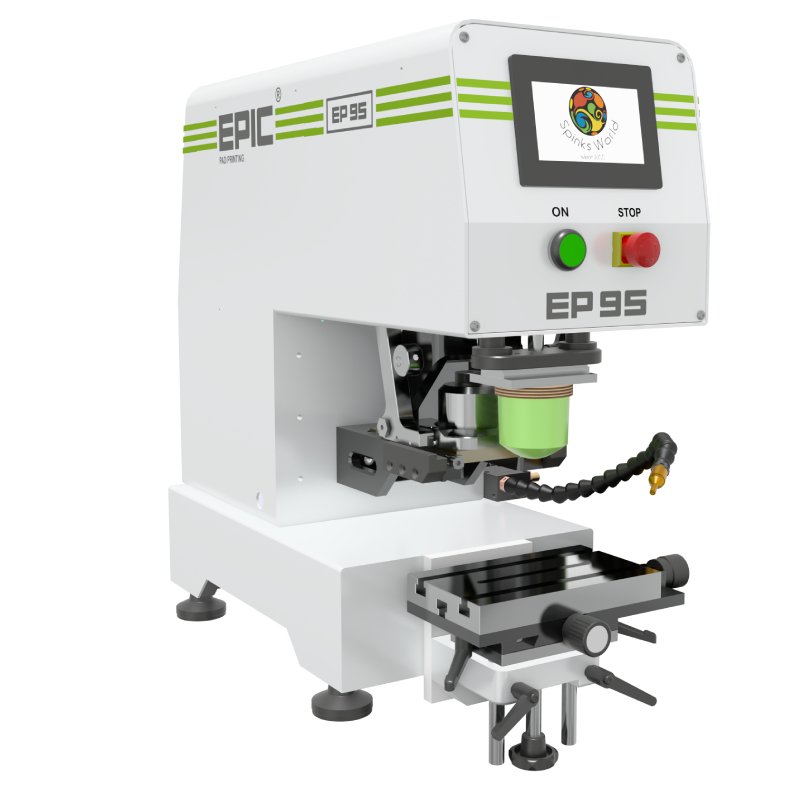

EPIC 95

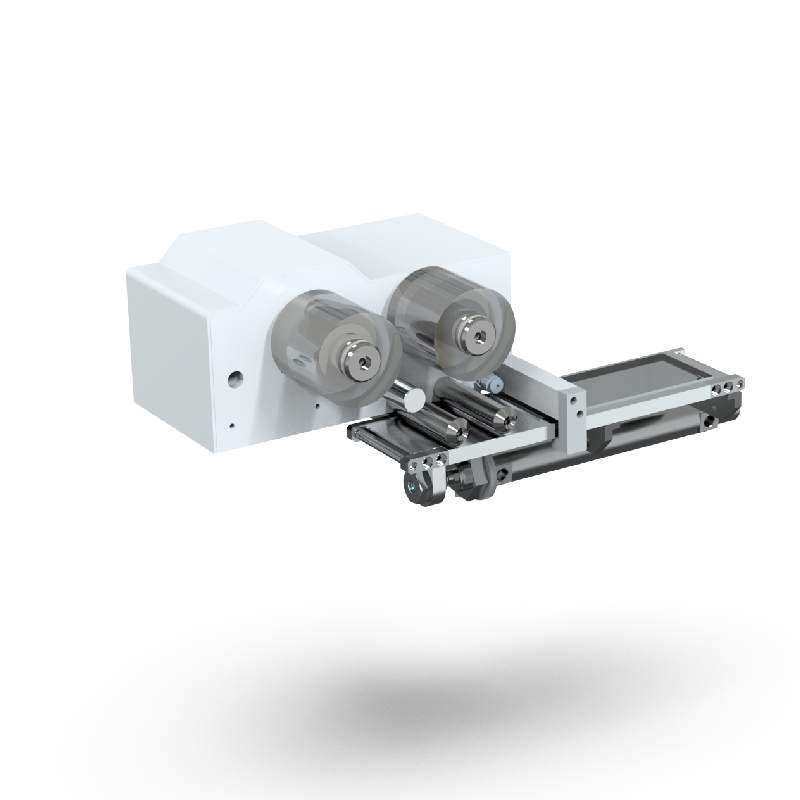

Tape cleaning System
Technical Specifications
Technical Features | Units | EP 90 | |
|---|---|---|---|
Part no. | 160 000 | ||
Ink doctoring cup | Φ mm | 90 | 95* |
Cliché size | mm | 100x215 | |
Print image size max. | mm | Փ 85 (60x60) | 90* |
Single cycle | Yes | ||
Multiple printing double/triple | Yes (Programmable) | ||
Continuous run | Yes | ||
Cycle counter | Yes | ||
Number of cycles (in continuous single run) | cycles/h | Up to 1600 | |
Pad stroke onto cliché | mm | 30-70 | |
Pad stroke onto work piece, variably adjustable | mm | 35-100 | |
Pad installation height max. | mm | 100 | |
Force of pressure | N | 1200 | |
Variable speed control | Yes | ||
Precise X-Y-Z-R table | Yes | ||
Noise emission | dB (A) | 75-85 | |
Length | mm | 702 | |
Height | mm | 670 | |
Width | mm | 300 | |
Weight* (net/gross) | kgs | 80/100 | |
Drive | Electro-pneumatic | ||
Control | PLC | ||
User interface HMI | 4" | ||
Connected load | KW | 0.2 | |
Prefuse | 6A | ||
Power supply (special voltage on request) | 230 V 1/N/PE | ||
Power frequency | Hz | 50-60 | |
Control voltage | V/DC | 24 | |
Air consumption/cycle | NL | 5.7 | |
Pneumatic supply with fine filter 5 µm | Bar | 6 | |
Tape cleaning system (TCS) | Optional | ||
Indexing module | Optional | ||
DIY Stand (Do it Yourself) | Optional | ||
Air shower | Optional | ||
Global Language HMI - Default English | 27 languages | ||
Frequently Asked Questions (FAQs)
FAQs About EPIC EP 90 Pad Printing Machine
Elevate Your Printing Capabilities with EPIC EP 90
The EPIC EP 90 electro-pneumatic pad printing machine is more than just equipment—it’s a production powerhouse built for precision, efficiency, and scalability. If your business is ready to achieve consistent high-quality printing while lowering operational costs, the EP 90 is the solution you’ve been looking for.
