EPIC EP 60 Pad Printing Machine
Compact Pad Printing Machine for plastics, metals, glass. 55mm print, 2000 cycles/hour, precise, efficient, versatile.
Unveiling the EPIC EP 60
The EPIC EP 60 pad printing machine is engineered for precision, efficiency, and space-saving performance. Designed with a 55mm print diameter and a compact footprint, the EP 60 is the perfect choice for businesses that demand high-quality printing results in limited production areas. Despite its small size, it delivers powerful performance, making it one of the most reliable standard pad printing machines in the EPIC lineup.
Whether you are printing on plastics, metals, glass, or coated surfaces, the EP 60 ensures crisp, consistent, and detailed prints every time. It is a trusted solution for industries where accuracy, speed, and cost efficiency are essential.
55mmPrinting area
2000 cycles/hPrinting Speed
Drive – Electro Pneumatic
750N Force of Pressure
Key Features of the EPIC EP 60
High-Precision Printing
Equipped with advanced pad printing technology, the EP 60 reproduces intricate designs and fine details with unmatched clarity.
User-Friendly Operation
Its intuitive interface simplifies setup and operation, ensuring even new operators can handle the machine with ease.
Quick Setup & Changeover
With fast setup and minimal downtime between jobs, the EP 60 maximizes production efficiency and keeps workflows seamless.
Versatile Printing Capabilities
Capable of printing on a variety of substrates including plastics, metals, glass, and coated materials, the EP 60 adapts to multiple applications.
Optimized Ink Consumption
Engineered for efficiency, the EP 60 reduces ink wastage, making every print job cost-effective and eco-friendly.
Industries & Applications
The EPIC EP 60 is trusted across industries that demand reliability, precision, and compact solutions. Common applications include: With its balance of size, power, and performance, the EP 60 is the go-to machine for companies seeking dependable pad printing in the USA.
Discover Variants
From 2-color to 6-color machines, customize printing power to match your production scale.

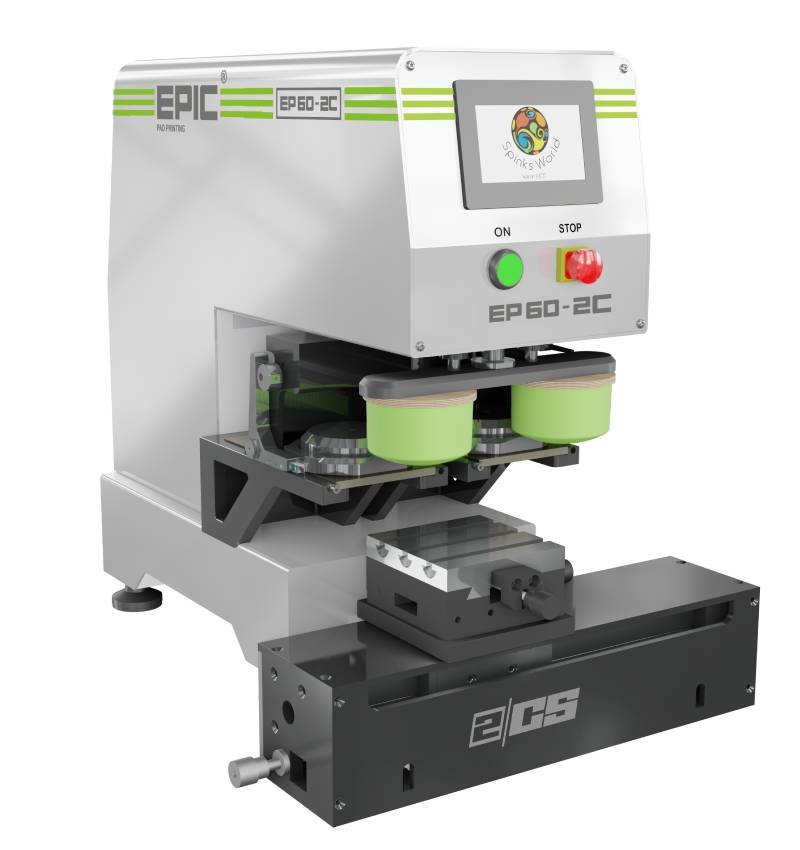

2 Color Machine
3 Color Machine

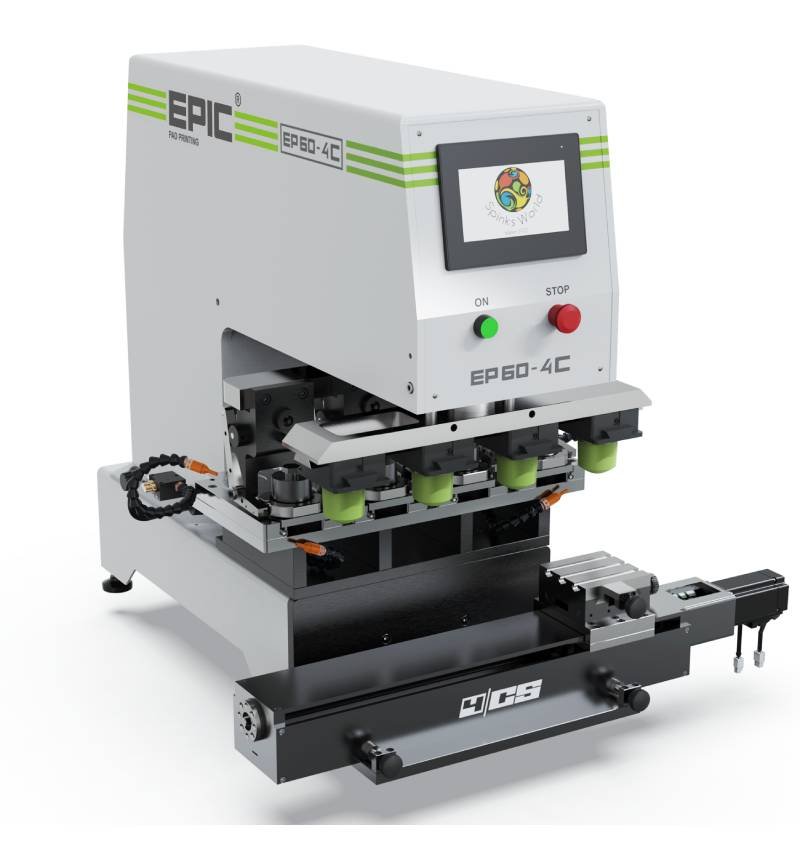

4 Color Machine
6 Color Machine
Technical Specifications
Technical Features | Units | EP 60 | |
|---|---|---|---|
Part no. | 160 000 | ||
Ink doctoring cup | Φ mm | 60 | 65* |
Cliché size | mm | 70x140 | |
Print image size max. | mm | Φ 55 (38 x 38) | 60* |
Single cycle | Yes | ||
Multiple printing double/triple | Yes (Programable) | ||
Continuous run | Yes | ||
Cycle counter | Yes | ||
Number of cycles (in continuous single run) | cycles/h | Up to 2000 | |
Pad stroke onto cliché | mm | 20-50 | |
Pad stroke onto work piece, variably adjustable | mm | 20-80 | |
Pad installation height max. | mm | 66 | |
Force of pressure | N | 750 | |
Variable speed control | Yes | ||
Precise X-Y-Z-R table | Yes | ||
Noise emission | dB (A) | 75-85 | |
Length | mm | 600 | |
Height | mm | 535 | |
Width | mm | 250 | |
Weight* (net/gross) | kgs | 50/60 | |
Drive | Electro-pneumatic | ||
Control | PLC | ||
User interface HMI | 4" | ||
Connected load | KW | 0.2 | |
Prefuse | 6A | ||
Power supply (special voltage on request) | 230 V 1/N/PE | ||
Power frequency | Hz | 50-60 | |
Control voltage | V/DC | 24 | |
Air consumption/cycle | NL | 3 | |
Pneumatic supply with fine filter 5 um | Bar | 6 | |
Tape cleaning system (TCS) | Optional | ||
Indexing module | Optional | ||
DIY Stand (Do it Yourself) | Optional | ||
Air shower | Optional | ||
Global Language HMI - Default English | 27 languages | ||
