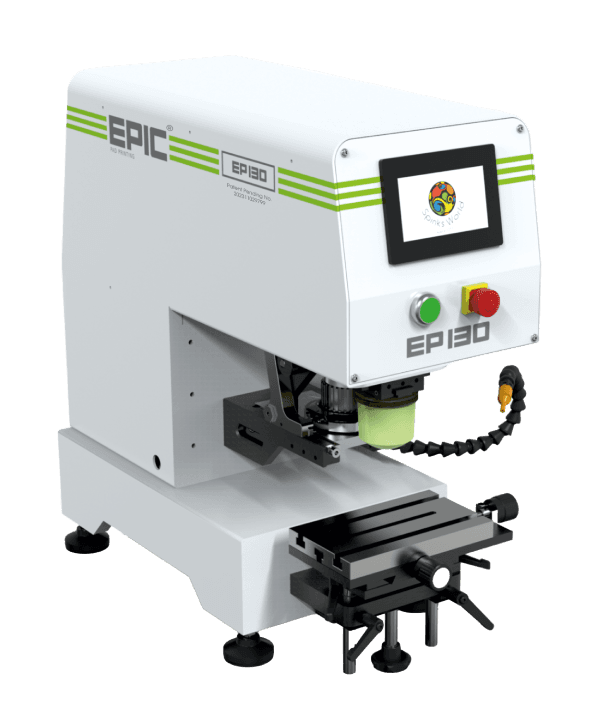

EPIC EP 130
Large Surface Pad Printing Machine USA
Advanced Pad Printing for Automotive, Electronics, and Promotional Products
The EPIC EP 130 pad printing machine is a powerful and versatile solution engineered for printing larger surfaces up to 130mm with unmatched precision and consistency. Built with robust engineering and advanced technology, this machine is trusted across industries such as automotive, electronics, medical devices, and promotional product manufacturing.
Whether you’re printing logos, detailed graphics, or technical markings, the EP 130 ensures professional-grade results on flat, curved, or uneven surfaces—making it the go-to choice for U.S. manufacturers looking for scalable and reliable pad printing solutions.
125mmPrinting area
1250 cycles/hPrinting Speed
Drive – Electro Pneumatic
3000N Force of Pressure
Key Features of the EPIC EP 130
Large Printing Capacity (up to 125mm)
Perfect for bigger logos, designs, and component marking across multiple industries.
Precision Printing on All Surfaces
Delivers sharp, durable prints even on complex or irregular substrates.
High-Volume Capability
Designed for continuous production, ensuring consistent quality for large batch runs.
Automation-Ready Interface
Features a 37-pole automation interface for seamless integration with indexers, conveyors, and robotic systems.
Versatile Applications
Works with plastics, metals, glass, ceramics, and coated surfaces—offering maximum flexibility.
Durable and Reliable Engineering
Built to meet global standards with low maintenance requirements and long service life
Industries & Applications
The EPIC EP 60 is trusted across industries that demand reliability, precision, and compact solutions. Common applications include: With its balance of size, power, and performance, the EP 60 is the go-to machine for companies seeking dependable pad printing in the USA.
Why Choose EPIC EP 90?
A new benchmark in efficiency, quality, and global reliability.
Made in India, Built for Global Manufacturing Standards
Engineered by Spinks World with 40+ years of printing expertise
Seamless integration into automated production lines
Trusted by U.S. manufacturers in automotive, medical, and electronics sectors
Consistent high-quality prints that reduce rejects and save costs
Discover Variants
From 2-color to 6-color machines, customize printing power to match your production scale.

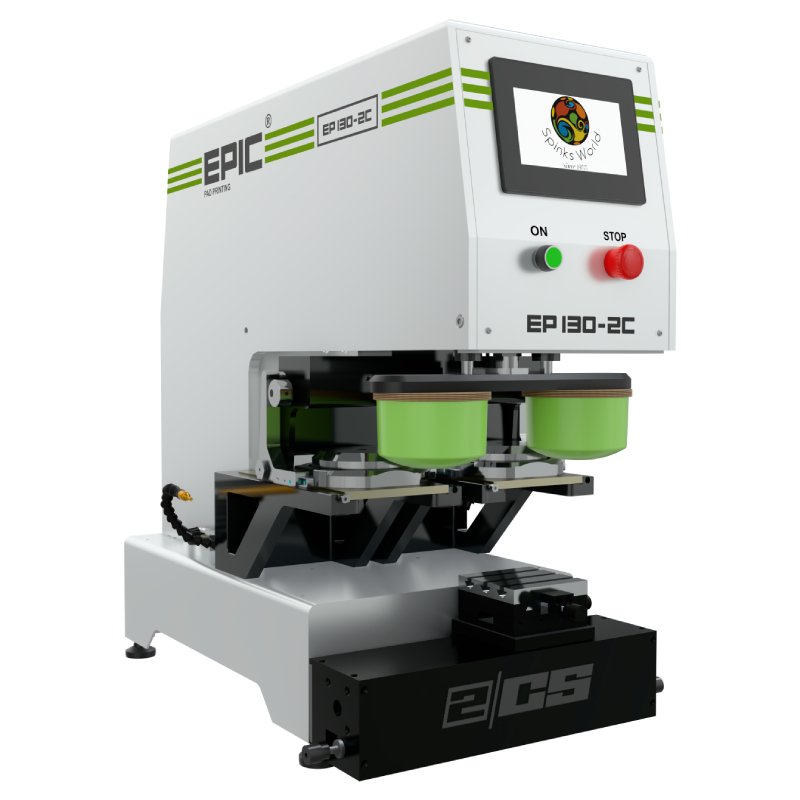

2 Color Machine

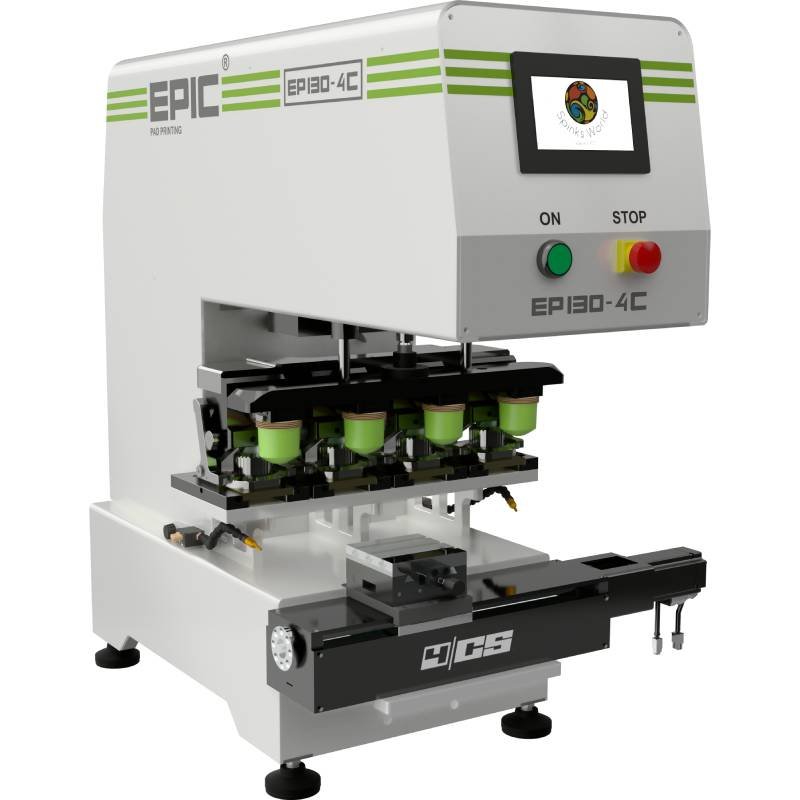

4 Color Machine
Technical Specifications
Technical Features | Units | EP 130 | |
|---|---|---|---|
Part no. | 1,30,000 | ||
Ink doctoring cup | Φ mm | 130 | 135* |
Cliché size | mm | 150x300 | |
Print image size max. | mm | Փ 125 (88x88) | 130* |
Single cycle | Yes | ||
Multiple printing double/triple | Yes (Programmable) | ||
Continuous run | Yes | ||
Cycle counter | Yes | ||
Number of cycles (in continuous single run) | cycles/h | Up to 1250 | |
Pad stroke onto cliché | mm | 35-80 | |
Pad stroke onto work piece, variably adjustable | mm | 25-120 | |
Pad installation height max. | mm | 120 | |
Force of pressure | N | 3000 | |
Variable speed control | Yes | ||
Precise X-Y-Z-R table | Yes | ||
Noise emission | dB (A) | 75-85 | |
Length | mm | 925 | |
Height | mm | 850 | |
Width | mm | 420 | |
Weight* (net/gross) | kgs | 140/170 | |
Drive | Electro-pneumatic | ||
Control | PLC | ||
User interface HMI | 7" | ||
Connected load | KW | 0.2 | |
Prefuse | 6A | ||
Power supply (special voltage on request) | 230 V 1/N/PE | ||
Power frequency | Hz | 50-60 | |
Control voltage | V/DC | 24 | |
Air consumption/cycle | NL | 17.5 | |
Pneumatic supply with fine filter 5 um | Bar | 6 | |
Tape cleaning system (TCS) | Optional | ||
Indexing module | Optional | ||
DIY Stand (Do it Yourself) | Optional | ||
Air shower | Optional | ||
Global Language HMI - Default English | 27 languages | ||
Frequently Asked Questions (FAQs)
FAQs About EPIC EP 90 Pad Printing Machine
Unlock Precision Printing with EPIC EP 130
The EPIC EP 130 pad printing machine is more than a printer—it’s a scalable, automation-ready solution designed for modern U.S. manufacturing needs. With its ability to print on large and uneven surfaces while maintaining clarity and durability, the EP 130 empowers businesses to achieve world-class results.
Contact Spinks USA today to learn how the EP 130 can transform your production line with precise, efficient, and high-quality pad printing.
